Component catalogue

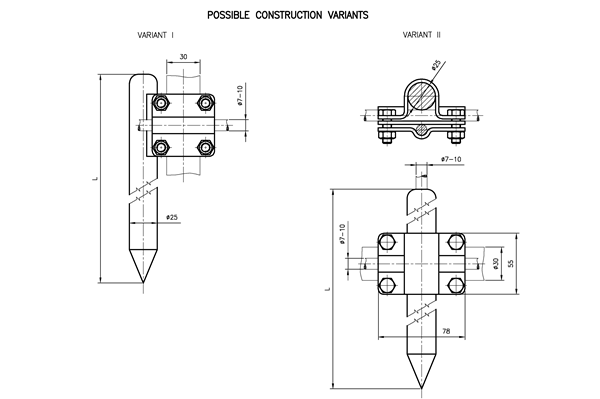

Earthing rod with clamp
Variants
| Catalog number | Component name | L [mm] | Weight [kg] |
|---|---|---|---|
| H32/II/1000 | Earthing rod with clamp | 1000 | 4,028 Var.I, 4,197 Var.II |
| H32/II/1500 | Earthing rod with clamp | 1500 | 5,984 Var.I, 6,347 Var.II |
| H32/II/2000 | Earthing rod with clamp | 2000 | 7,860 Var.I, 8,187 Var.II |
Elektrizace železnic Praha a.s. Central storage Semanínská 2082, 560 02 Česká Třebová CZ
49°53'36.234"N, 16°26'50.615"E
Data version: 2013-05-30
