Component catalogue

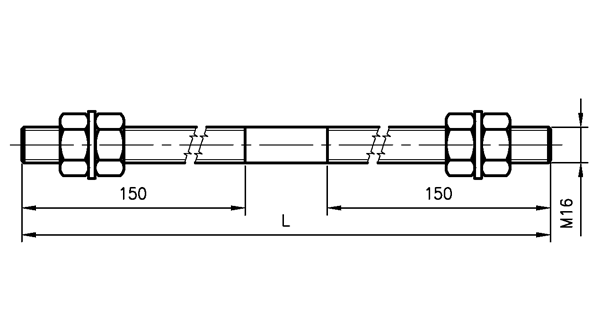

Bolt M16 with Thread on Both Sides

Variants

Catalog number Component name L [mm] Weight [kg]
S41/I/290 Bolt M16 with Thread on Both Sides-4 nuts, 2 washers 290 0.612
S41/I/350 Bolt M16 with Thread on Both Sides-4 nuts, 2 washers 350 0.706
S41/I/370 Bolt M16 with Thread on Both Sides-4 nuts, 2 washers 370 0.743
S41/I/450 Bolt M16 with Thread on Both Sides-4 nuts, 2 washers 450 0.865
S41/I/540 Bolt M16 with Thread on Both Sides-4 nuts, 2 washers 540 1.007
S41/I/600 Bolt M16 with Thread on Both Sides-4 nuts, 2 washers 600 1,256
S41/I/730 Bolt M16 with Thread on Both Sides-4 nuts, 2 washers 730 1.461
S41/I/750 Bolt M16 with Thread on Both Sides-4 nuts, 2 washers 750 1,493
S41/I/800 Bolt M16 with Thread on Both Sides-4 nuts, 2 washers 800 1,572
S41/I/850 Bolt M16 with Thread on Both Sides-4 nuts, 2 washers 850 1,651
S41/I/900 Bolt M16 with Thread on Both Sides-4 nuts, 2 washers 900 1,73
S41/I/1000 Bolt M16 with Thread on Both Sides-4 nuts, 2 washers 1000 1,888
